 F-1600 Triplex Mud Pumps (API-7K)

Specifications

Rated Horsepower: 1,600 HP
Rated Pump Speed: 120 SPM
Maximum Liner Size by Stroke Length: 7" x 12"
Suction Connection: 12"
Discharge Connection: 5-1/8" 5,000 psi Flange
Gear Ratio: 4.206:1
Valve Pot: API #7
Approximate Weight: 54,655 lbs

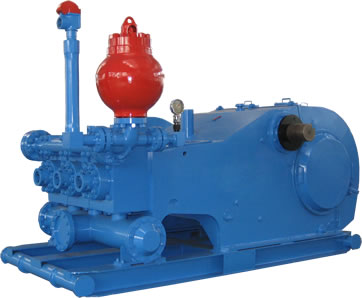

1600 HP triplex mud pump


  Performance

Liner Size, inches
7
6-3/4
6-1/2
6
5-1/2
5
Rated Pressure, psi
3,430
3,690
3,978
4,668
5,000
5,000
Pump Speed
SPM
Input Power
HP
Displacement, GPM
120
1,600
720
669
621
529
444
367
110
1,467
660
613
569
485
407
337
100
1,334
600
558
517
441
370
306
90
1,200
540
502
465
397
333
275
80
1,067
480
446
414
353
296
245
70
933
420
390
362
308
259
214
Volume/Stroke, gallons
6.00
5.58
5.17
4.41
3.70
3.06

   Ratings are based on 90% mechanical efficiency and 100% volumetric efficiency.
